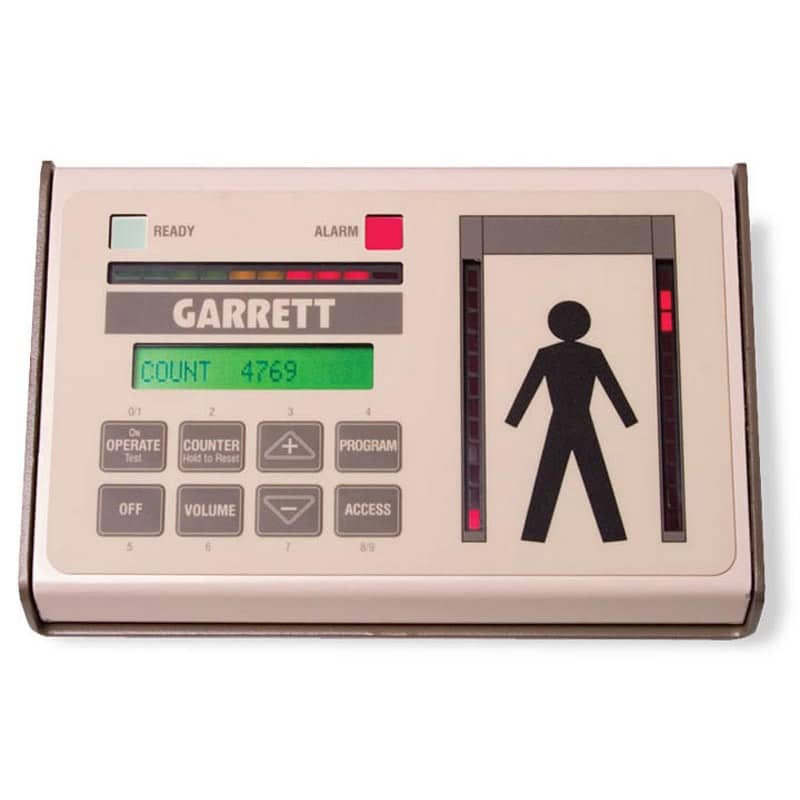

PD 6500i DESKTOP REMOTE CONSOLE WITH ZONE INDICATION

For remote operation of the detector

• Includes 50-foot cable. (optional lengths available)

Part No. 1171100 for use with Garrett Multi Zone (MZ 6100) only.

Provides pacing light and zone indicators on entry and exit sides of both panels. Factory installation recommended.

Part No. 1171700 for use with Garrett MZ 6100 only.

Provides an isolated relay contact to control lights, doors, equipment. Internal dip switches provide 4 operating modes

• Activate on alarm
• Activate on passage of each patron
• Activate on alarm, release on non-alarm
• Activate on non-alarm for 5 seconds

Part No. 1171200 for use with Garrett PD 6500i or Multi Zone (MZ 6100).

The iC Module allows users to communicate to a walk-through metal detector with a laptop or desktop PC through the network either wired or wirelessly. It allows control, real time monitoring and diagnostics from a remote location. The internal memory records all changes to settings and passenger traffic and alarm history for analytical evaluation.

• Gain real-time access to all walk-through detectors on your network.
• Utilize group management function to organize multiple walk-throughs by location and name (ex. North Entrance: WT1, WT2, etc.)
• Adjust settings such as programs or base sensitivity for multiple walk-through detectors all at one time using the group management function.
• Analyze security checkpoint alarm rates, patron counts and other diagnostic statistics.
• Check settings and diagnose issues with detectors on your network.

Part No. 1171600 for use with the Garrett PD 6500i or Multi Zone (MZ 6100).
