Highlights:

The Garret PD6500i Metal Detector is the most advanced of its kind. With exceptional features such as Interference Suppression and the Advanced Broadband detection technology, the PD6500i Metal Detector will meet all your company needs. With an attractive and protective construction, along with 33 Pinpoint Zones, this metal detector will provide your company with professional security.

SKU: 1168424 Categories: ,
Description

Garrett’s PD 6500i is an industry leader with superior pinpoint technology and unmatched discrimination features. The PD 6500i has also been trusted to safeguard international airports, hotels, government buildings, and correctional facilities. With its advanced networking and ability to pinpoint targets in 33 detection zones, the PD 6500i is the walk-through of choice for security professionals worldwide.

U.S.A. / International Description Color
1168414 / 1168424* PD 6500i 30" IP 55 Gray
1168418 / 1168425* PD 6500i 30" IP 65 Gray
1168416 / 1168426* PD 6500i EZL† IP 55 Gray
1168432 / 1168427* PD 6500i 32.5"** IP 55 Gray
Other options available.
* Supplied with Euro plug.
† EZL—Standard 30" clearance with zone lights on both the entry and exit sides, allowing the operator to view the alarmed object from any position.
** 32" ADA-compliant passageway

GARRETT QUICK-Q SOFTWARE PACKAGE

Quick Q

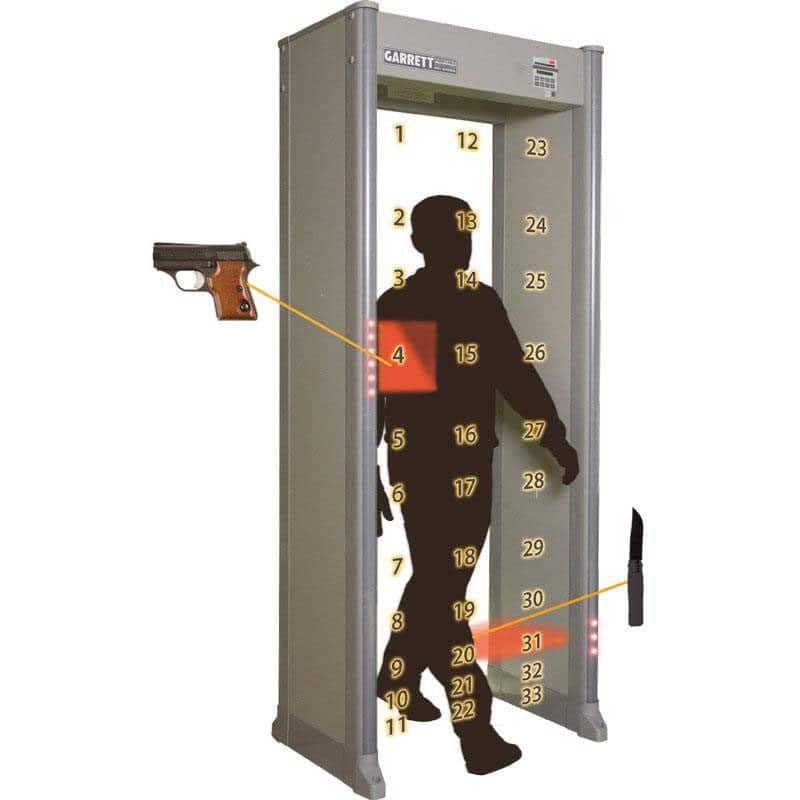

33 ZONES

View a demonstration of the PD 6500i’s 33 pinpoint zones. Identify multiple target locations precisely from head to toe on the left, center, and right sides of the bod

INTERNATIONAL SECURITY STANDARDS

PD 6500i™ meets the world’s highest test certifications, including the following international airports:

logo-tsa

TSA
(U.S. airports)

logo-ecac

ECAC
(European airports)

logo-dgac

STAC
(French airports)

logo-aena

AENA
(Spanish airports)

logo-eaaa

CJIAC
(Japanese airports)

Airport

PREVIEW VIDEO OF PD 6500i ™

PORTABLE PROTECTION

PD_portable_protection

Fast, easy, versatile security. Equipped with optional casters and battery module, the PD 6500i™ can be rapidly deployed at special events, stadiums, schools, and other large venues.

No wires to deal with. Easy to move to another location with a moment’s notice.

Pictured: PD 6500i™ shown with optional casters and battery module

PD 6500i ™ ADDITIONAL FEATURES

Optimum

OPTIMUM PERFORMANCE

More than 20 standard programs for security versatility. Multiple units can be installed as close as 2 inches from each other.
Dualdetection

DUAL DETECTION

With transmitters and receivers in each panel, the PD 6500i is the equivalent of two detectors in one. By scanning from both sides, the PD 6500i provides superior detection, uniformity and performance.
Directional

DIRECTIONAL COUNTER

With four settings for counting (forward, reverse, subtract in reverse, and bi-directional).
Networking

NETWORKING ABILITY

Manage walkthroughs individually or as groups and perform statistical analysis via network with iC Module.

MULTI-BRAND COMPATIBILITY

Can be added to existing checkpoints without having to replace other brand units. Includes multiple channels and 2,300 selectable operating frequencies.

SUPERIOR VERSATILITY

Selectable settings designed for airports, courthouses, prisons, schools, facilities, special events, mass transit, loss prevention and many other applications.

TAMPER-PROOF

All settings are secured with a key lock and two levels of access codes. Further security is accomplished with a cabinet lock which prevents unauthorized access to physical cables, connectors and electronics.

ADVANCED BROADBAND DETECTION TECHNOLOGY

Provides superior target analysis, ferrous and non-ferrous weapons detection, discrimination and higher throughput.
Pacing

PACING LIGHTS

At the entrance display universal “wait” and “proceed” symbols for traffic control.
usb

INTERNAL USB PORT

For updating software.
Random Alarm

RANDOM ALARM FEATURE

Provides ability to randomly alarm on a selected percentage of non-alarming persons; adjustable from 0 to 50 percent.
Alarms

ALARMS

Audible tone and volume adjustable. Bright LED visual alarm.

GARRETT WALK-THROUGH DETECTOR SPECS COMPARISON

PD 6500i™
For maximum performance 		Multi Zone™
Powerful and budget friendly
Detection Zones 33 zones (left, right and center); visual and audible alarms with a built-in dry contact alarm relay 20 independent zones; visual and audible alarms
Multi-Unit Synchronization Synchronization with wired AC power lines or with manual frequency selection for wireless operation Synchronization with wired AC power lines or with manual frequency selection for wireless operation. Auto frequency scan for wireless operation
Visual Displays LED zone indicator lights on both panels. Pace lights on entry side only, with intuitive images. LED zone indicator lights on both panels. Status lights are individually configurable as pace lights, ready/alarm lights or disabled.
Access Control Eight-button keypad with numerical codes. Keypad lock to control access and to enable/disable the keypad. Ten-button operation with full alpha-numeric 5-digit access code. Enable and disable keypad function with a rocker switch locked inside the detector head.
Passageway Interior Size Width 30" (0.76 m)
Height 80" (2.03 m)
Depth 23" (0.58 m)


(32” versions are also available) 		Width 30" (0.76 m)
Height 80" (2.03 m)
Depth 23" (0.58 m)


(32” versions are also available)
Overall Exterior Size Width 35" (0.90 m)
Height 87" (2.21 m)
Depth 23" (0.58 m) 		Width 35" (0.90 m)
Height 87" (2.21 m)
Depth 23" (0.58 m)
Shipping Size Width 35.5" (0.90 m)
Height 91.5" (2.32 m)
Depth 6.25" (.16 m) 		Width 35.5" (.90 m)
Height 91.5" (2.32 m)
Depth 6.25" (.16 m)
Shipping Weight 165 lbs. (74 kg) 151 lbs. (68.5 kg)
Operating Temperatures -4º F (-20º C) to +149º F (65º C); Humidity to 95% non-condensing. -4º F (-20º C) to +140º F (60º C); Humidity to 95% non-condensing.
Power Fully automatic 100 to 240 VAC, 50 or 60 Hertz, 45 watts; no rewiring, switching or adjustments needed. Fully automatic 100 to 240 VAC, 50 or 60 Hertz, 40 watts; no rewiring, switching or adjustments needed. 1-hour backup battery included for the MultiZone.
Regulatory Information Meets international airport standards such as TSA, ECAC, STAC, AENA, CJIAC, DFT. Meets additional standards and requirements such as USMS, NIJ-0601.02, NILECJ. Meets Electrical Safety and Compatibility Requirements for CE, FCC, CSA, IEC, ICNIRP, IEEE. Meets Electrical Safety and Compatibility Requirements for CE, FCC, CSA, IEC, ICNIRP and IEEE. Additional certifications pending.
Weatherproofing Meets IP 55, IP 65, IEC 529 Standard for moisture, foreign matter protection Meets IP 55, IEC 529 Standard for moisture, foreign matter protection
Construction Attractive scratch and mar-resistant laminate. Detection Heads and Support: heavy duty aluminum. Attractive scratch and mar-resistant laminate. Detection Heads and Support: heavy duty aluminum.
Control Outputs Solid state switches (low voltage AC or DC) for operating external alarms and control devices. Optional Relay module connected via RS 485 cable provides NO/NC relay contact
(optional) Remote Control Desktop Remote Control with Zone Indication; personal computer with wired or wireless iC Module; or IR remote Desktop Remote Control with Zone Indication; personal computer with wired or wireless iC Module; or IR remote
(optional) Networking Manage individual or groups of walkthroughs and perform statistical analysis of throughput with wired or wireless iC Module and client software. Manage individual or groups of walkthroughs and perform statistical analysis of throughput with wired or wireless iC Module and client software.

Garrett Walk-Through Detector Safety
Garrett walk-through metal detectors meet U.S. and international regulatory requirements for electromagnetic safety. Extensive research has found no information that would indicate Garrett products have adverse effects on pregnancy, medical devices (such as pacemakers) or magnetic recording media. However, directives by physicians and medical device manufacturers regarding metal detectors should be followed.

Key Features

Key Features

  • 33 detection zones for precise identification on multiple objects, from head to toe, on the left / middle / right side of the body.
  • More than 20 standard programs for versatility.
  • Meets international safety standards.
  • The PD 6500i meets the world’s highest standards, including those used at the following international airports, TSA, ECAC, STAC, AENA, CJIAC, DfT
  • Direction counting – four settings for counting (forward, backward, subtract and bidirectional).
  • Dual Search: Both panels are equipped with transmitters and receivers, making the PD 6500i two metal detectors in one.It searches from both sides for excellent smoothness and performance.
  • Using broadband search technology, it provides excellent target analysis for ferrous and non-ferrous metal weapons, increasing throughput.
  • Easy assembly
    The modular design of the PD 6500i allows for quick and easy assembly; you only need to connect the four main components with eight screws and three cables.
  • Precise Positioning Zones
    Garrett Multiple Target Identification displays 33 distinct zones, precisely defining the left, right, center, from head to toe.
  • Entrance Signals
    Efficient traffic flow, with visible, eye-level lights, international “wait” and “go” symbols on the entrance side, on both panels.
  • Floor mounting (option)
    You can attach the PD 6500i to the floor with the optional adhesive kit, which can also be used to protect the floor when moving the unit.

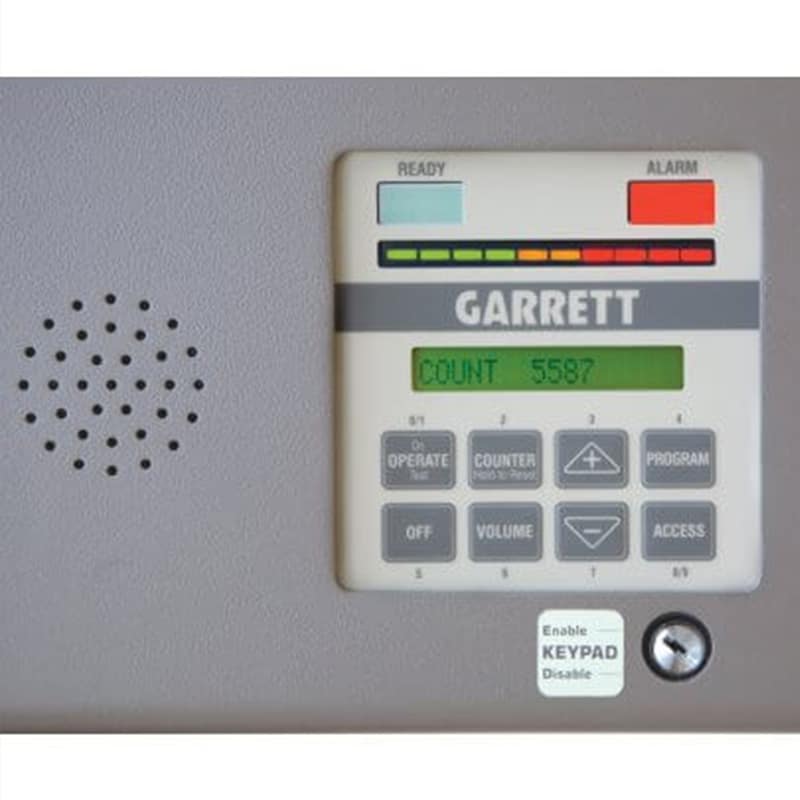

  • The PD 6500i control unit allows authorized use with multi-level code;you can change settings such as program and sensitivity. A beep will sound within 10 seconds if you enter an incorrect code.
  • The PD 6500i retains all settings in the event of a power failure and does not require re-calibration every time the unit is turned off and then on again.No battery is required for memory operation.If the unit is operating, it will perform a self-test on each system continuously, and any faults or problems will be displayed on the LC display immediately.
  • Overhead control unit
    LC display, alarm lights, LED diagram and control buttons, plus all wiring, connections, electronics are locked in a simple lockable overhead unit, eliminating the need for an external control unit and wiring.
  • Multidimensional Roll
    The PD 6500i is equipped with an exclusive multidimensional roll that filters out unwanted objects such as guns, knives, or other thin cylindrical weapons;regardless of location.
  • Audio and visual alarm
    Audible sound and visible LEDs when a target is found.Digital Signal Processor (DSP) -based Technology DSP results in better sensitivity, noise immunity, discrimination, search homogeneity, and an overall more valuable product.
  • 33 separate detection zones
    The PD 6500i has an exclusive 33 detection zones on the left / middle / right side of the body for full detection, from head to toe.
  • Digital Signal Processor (DSP) -based Technology
    DSP provides better sensitivity, noise immunity, discrimination, search homogeneity, and an overall more valuable product.
Brochure

Brochure

Click to view or download PDF

PD 6500i
